A-00759161A Driveline, Complete PN: 00759161A

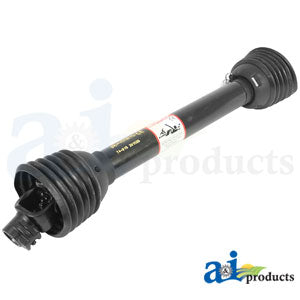

This is a A-00759161A Driveline, Complete PN: 00759161AMain Description As Following : A-00759161A Driveline; Complete P.N: 00759161A New 100 Series replacement complete Rhino driveline. Rated category 3 (35hp). Minimum C-to-C length: 28??? (710 mm), Maximum C-to-C length: 41??? (1060 mm), Total collapsed length: 36??? (915 mm). Tractor yoke is 1-3/8??? 6 spline, implement yoke is 1-3/8??? Round Bore with 1/2??? pin hole. Driveline has 5 ft. lift on a 3 pt. hitch. Fit Rhino Rotary Cutter models.Verify Length Before Ordering. May Need To Order CS44114 For Some 5 Foot ApplicationsIt may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.C to C Max: 1060 mm/ 41"C to C Min: 710 mm/ 28"Category: 3 (35HP)Implement: 1 3/8" RB 1/2" PHSeries: 100Size: 4Total Collapsed Length: 915 mm/ 36"Tractor: 1 3/8" -6Type: 5 ft. Lift / 3-pt. Hitch Stocked As: A-CS42814 Found in Section & Models : Tractor Parts Associated Items : New Also This is An Aftermarket Product And : New 100 Series replacement complete Rhino driveline. Rated category 3 (35hp). Minimum C-to-C length:






28? (710 mm), Maximum C-to-C length: 41? (1060 mm), Total collapsed length: 36? (915 mm). Tractor



yoke is 1-3/8? 6 spline, implement yoke is 1-3/8? Round Bore with 1/2? pin hole. Driveline has 5 ft.



lift on a 3 pt. hitch. Fit Rhino Rotary Cutter models. Verify Length Before Ordering. May Need To Order CS44114 For Some 5 Foot Applications It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient






overlap of the drive tubes exists in all working positions without the possibility of bottoming out. C to C Max: 1060 mm/ 41" C to C Min: 710 mm/ 28" Category: 3 (35HP) Implement: 1 3/8" RB 1/2" PH Series: 100 Size: 4 Total Collapsed Length: 915 mm/ 36" Tractor: 1 3/8" -6 Type: 5 ft. Lift / 3-pt. Hitch
