A-3802403 Kit, Piston Liner, Thick Wall / Long Liner (5.152" Flange) PN: 3802403

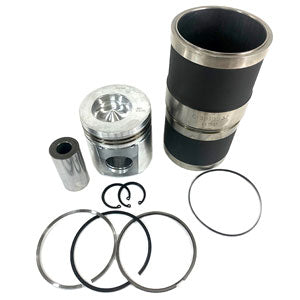

This is a A-3802403 Kit, Piston Liner, Thick Wall / Long Liner (5.152" Flange) PN: 3802403Main Description As Following : A-3802403 Kit, Piston Liner; Thick Wall/Long Liner (5.152" Flange) P.N: 3802403 Standard Piston Marked: 3163, 9564 Or 9928Block: 3802408Dim A (1): Thick Wall/Long LinerDim B (2): Flange: 5.152"Dim C (3): Length: 9.33"Block 3802408 (Thick Wall/Long Liner) Flange 5.152"Includes: Piston Part# 3923163, Wrist Pin Part# 3901597, Retainers Part# 3901996, Ring Set Part# 3802258 & Liner W/ Seal Part# 3802407. Replaces: C3802403 MAXIFORCE , Crossed From: HCK3802403 , , HE3802403 , Found in Section & Models : Tractor Parts Associated Items : A-3802258 Also This is An Aftermarket Product And : Standard Piston Marked: 3163, 9564 Or 9928 Block: 3802408 Dim A (1): Thick Wall / Long Liner Dim B (2): Flange: 5.152" Dim C (3): Length: 9.33" Block 3802408 (Thick Wall/Long Liner) Flange 5.152" Includes: Piston Part# 3923163, Wrist Pin Part# 3901597, Retainers Part# 3901996, Ring Set Part# 3802258 &






Liner W/ Seal Part# 3802407.
