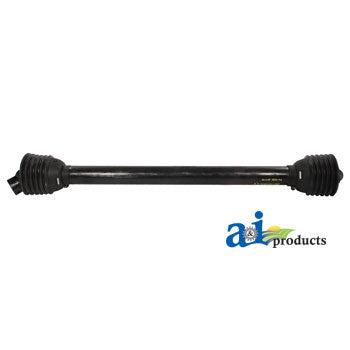

A-00768174A Driveline, Complete PN: 00768174A

This is a A-00768174A Driveline, Complete PN: 00768174AMain Description As Following : A-00768174A Driveline; Complete P.N: 00768174A New 100 Series replacement complete Rhino driveline. Rated category 3 (35hp). Minimum C-to-C length: 41??? (1035 mm), Maximum C-to-C length: 62??? (1560 mm), Total collapsed length: 48??? (1230 mm). Tractor yoke is 1-3/8??? 6 spline, implement yoke is 1-3/8??? Round Bore with 1/2??? pin hole. Driveline has 6 ft. lift on a 3 pt. hitch. Fit Rhino Rotary Cutter models.It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.C to C Max: 1560 mm/ 62"C to C Min: 1035 mm/ 41"Category: 3 (35HP)Implement: 1 3/8" RB 1/2" PHSeries: 100Total Collapsed Length: 1230 mm/ 48"Tractor: 1 3/8" -6Type: 6 ft. Lift / 3-pt. Hitch Stocked As: A-CS44114 Found in Section & Models : Driveline (by application) > Driveline Assembly, Rhino ROTARY CUTTER: SE6 (Lift Type) Associated Items : New Also This is An Aftermarket Product And : New 100 Series replacement complete Rhino driveline. Rated category 3 (35hp). Minimum C-to-C length:






41? (1035 mm), Maximum C-to-C length: 62? (1560 mm), Total collapsed length: 48? (1230 mm). Tractor



yoke is 1-3/8? 6 spline, implement yoke is 1-3/8? Round Bore with 1/2? pin hole. Driveline has 6



ft. lift on a 3 pt. hitch. Fit Rhino Rotary Cutter models. It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient






overlap of the drive tubes exists in all working positions without the possibility of bottoming out. C to C Max: 1560 mm/ 62" C to C Min: 1035 mm/ 41" Category: 3 (35HP) Implement: 1 3/8" RB 1/2" PH Series: 100 Total Collapsed Length: 1230 mm/ 48" Tractor: 1 3/8" -6 Type: 6 ft. Lift / 3-pt. Hitch
