A-70030-35255 Driveline, W/ Shear Bolt Clutch PN: 70030-35255

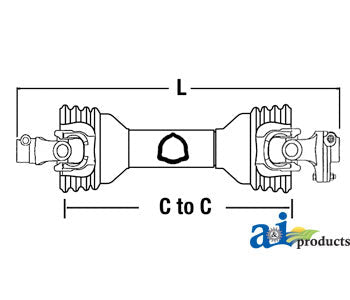

This is a A-70030-35255 Driveline, W/ Shear Bolt Clutch PN: 70030-35255Main Description As Following : A-70030-35255 Driveline; W/ Shear Bolt Clutch P.N: 70030-35255 Complete driveline with shear bolt clutch. 100 series, category 3, size 4 driveline. Minimum C-to-C length is 35" (885 mm), Maximum C-to-C length is 52" (1310 mm), Total collapsed length is 42" (1065 mm). Tractor end has 6, 1-3/8" splines, Implement end has 6, 1-3/8" splines with shear bolt clutch. Fits Kubota rotor tillers.Dim C (3): 1310 mm/ 52" [max c-to-c lengthC to C Min: 885 mm/ 35"Category: 3 (35HP)Implement: 1 3/8"- 6 w/ S.B. ClutchSeries: 100Size: 4Total Collapsed Length: 1065 mm/ 42"Tractor: 1 3/8"- 6 Stocked As: A-CS43518 Found in Section & Models : Driveline (by application) > Driveline Assembly, Kubota TILLER: BL52C Associated Items : New Also This is An Aftermarket Product And : Complete driveline with shear bolt clutch. 100 series, category 3, size 4 driveline. Minimum C-to-C






length is 35" (885 mm), Maximum C-to-C length is 52" (1310 mm), Total collapsed length is 42" (1065



mm). Tractor end has 6, 1-3/8" splines, Implement end has 6, 1-3/8" splines with shear bolt clutch.



Fits Kubota rotor tillers. Dim C (3): 1310 mm/ 52" [max c-to-c length C to C Min: 885 mm/ 35" Category: 3 (35HP) Implement: 1 3/8"- 6 w/ S.B. Clutch Series: 100 Size: 4 Total Collapsed Length: 1065 mm/ 42" Tractor: 1 3/8"- 6
