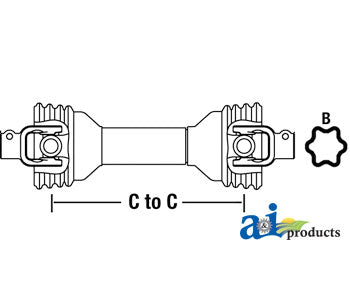

A-W250012100101 Driveline, Complete With 1-3/8" 6 Spline End Yokes PN: W250012100101

This is a A-W250012100101 Driveline, Complete With 1-3/8" 6 Spline End Yokes PN: W250012100101Main Description As Following : A-W250012100101 Driveline, Complete With 1-3/8" 6 Spline End Yokes P.N: W250012100101 Complete Driveline with splined quick disconnect yokes. Minimum C-to-C length: 48" (1210 mm); Maximum C-to-C length: 74" (1880 mm); Tractor end: 1-3/8" 6 Spline. Implement end: 1-3/8" 6 Spline. Tube style B. Rated category 6 (90 hp). For 2500 series. Replaces Walterscheid No. W250012100101. Fits Walterscheid W series.It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.C to C Max: 1880 MM/ 74"C to C Min: 1210 MM/ 48"Category: 6 (90HP)Implement: 1 3/8" - 6Replaces: Walterscheid Part No: W250012100101Size: 2500Total Collapsed Length: 1462 MM/ 58"Tractor: 1 3/8" - 6Tube Style: B Replaces: W2500-560 EDCOR , Crossed From: SW06515 , Found in Section & Models : Driveline > Driveline Assembly, Walterscheid W Series: 2500 Associated Items : New Also This is An Aftermarket Product And : Complete Driveline with splined quick disconnect yokes. Minimum C-to-C length: 48" (1210 mm);






Maximum C-to-C length: 74" (1880 mm); Tractor end: 1-3/8" 6 Spline. Implement end: 1-3/8" 6 Spline.



Tube style B. Rated category 6 (90 hp). For 2500 series. Replaces Walterscheid No. W250012100101.



Fits Walterscheid W series. It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient






overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Original Walterscheid part. C to C Max: 1880 MM/ 74" C to C Min: 1210 MM/ 48" Category: 6 (90HP) Implement: 1 3/8" - 6 Replaces: Walterscheid Part No: W250012100101 Size: 2500 Total Collapsed Length: 1462 MM/ 58" Tractor: 1 3/8" - 6 Tube Style: B
