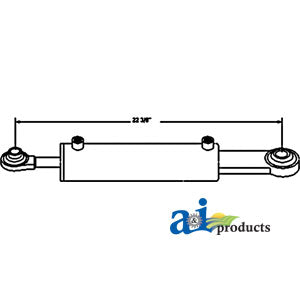

This is a A-TLH004 Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) PN: TLH004Main Description As Following : A-TLH004 Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) P.N: TLH004 All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90??? swivel.Dim I (9): 1450.377 PSIBarrel Length: 12.438"Base End Ball Inside Dia: 1"Base End Ball Width: 1.750"Base To Ball Center Lngth: 5.500"Compressed Length: 22"Replaces: Gannon 13-507Rod End Ball Inside Diame: .750"Rod End Ball Width: 1.750"Stroke: 8"Working Pressure: 1450 lbs Replaces: TLH04 MISCELLANEOUS , Crossed From: HTL3105 , , 13-507 MISCELLANEOUS Found in Section & Models : Hitch & Drawbar Parts > Hitches: 2PT and 3PT, (Miscellaneous) (UNDEFINED): SEVERAL, Ford / New Holland TRACTOR: SEVERAL (Check Dimensions For Your Application), John Deere TRACTOR: SEVERAL (Check Dimensions For Your Application), Kubota TRACTOR: SEVERAL (Check Dimensions For Your Application), Massey Ferguson TRACTOR: SEVERAL (Check Dimensions For Your Application), Hitch & Drawbar Parts > Side/ Top Link Cylinders, (Miscellaneous) (UNDEFINED): SEVERAL, Ford / New Holland TRACTOR: SEVERAL (Check Dimensions For Your Application), John Deere TRACTOR: SEVERAL (Check Dimensions For Your Application), Kubota TRACTOR: SEVERAL (Check Dimensions For Your Application), Massey Ferguson TRACTOR: SEVERAL (Check Dimensions For Your Application), Hitch & Drawbar Parts > Top Links, Top Link Pins, Center Links & Jacks, (Miscellaneous) (UNDEFINED): SEVERAL Associated Items : A-TLH104RK Also This is An Aftermarket Product And : All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90? swivel. Barrel Length: 12.438" Base End Ball Inside Dia: 1" Base End Ball Width: 1.750" Base To Ball Center Lngth: 5.500" Compressed Length: 22" PSI: 1450.377 Replaces: Gannon 13-507 Rod End Ball Inside Diame: .750" Rod End Ball Width: 1.750" Stroke: 8" Working Pressure: 1450 lbs
