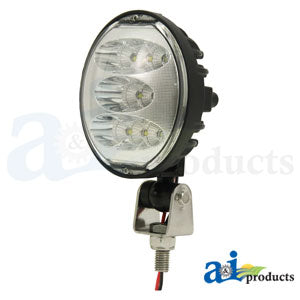

A-RE575338 Work Lamp, LED, Oval PN: RE575338

This is a A-RE575338 Work Lamp, LED, Oval PN: RE575338Main Description As Following : A-RE575338 Work Lamp, LED; Oval P.N: RE575338 Dim A (1): 8 - 5 Watt LED DiodesDim B (2): 3200 Raw Lumens ~ 2850 Effective LumensDim C (3): Color Temp 6000KDim D (4): Voltage: 10-30 Volt DCDim E (5): Draws 3.33 Amps @ 12 Volts & 1.66 Amps @ 24 Volts (Watts / Volts = Amps)Dim F (6): Body Material: Die Cast AluminumDim G (7): Body Size: Width 4.41" (11.2 CM) X Height 4.80" (12.2 CM) X Depth 2.72" (6.9 CM)Dim H (8): Lens Material: PolycarbonateDim I (9): Mount Bracket W/ Hollow Mounting Stud To Run Power Wires ThroughReplaces: AL202742, AL202743, RE233263 Stocked As: A-WL338 , Crosses To: A-WL338 JOHN DEERE Found in Section & Models : Lights & Related Parts > LED Work Lamps, John Deere TRACTOR: 7220, John Deere TRACTOR: 7320, John Deere TRACTOR: 7420, John Deere TRACTOR: 7520 (2003 Thru 2007) Associated Items : New Also This is An Aftermarket Product And : Body: Oval Body Material: Die Cast Aluminum Color Temperature: 6000K Dimensions: Width 4.41" (11.2 CM) X Height 4.80" (12.2 CM) X Depth 2.72" (6.9 CM) Diode: (8) 5 Watt Cree Diodes Draw: 3.33 Amps @ 12 Volts & 1.66 Amps @ 24 Volts (Watts / Volts = Amps) Lens: Polycarbonate Light Pattern: Flood Lumens Effective: 2,850 Lumens Raw: 3,200 Mounting: Mount bracket with hollow mounting stud to run power wires through Replaces: AL202742, AL202743, RE233263 Volt: 10-30 Volt DC
