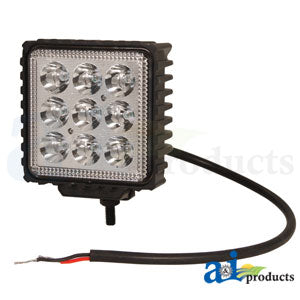

A-WL38BS Work Lamp, LED, Blue, Spot, Sprayer PN: WL38BS

This is a A-WL38BS Work Lamp, LED, Blue, Spot, Sprayer PN: WL38BSMain Description As Following : A-WL38BS Work Lamp, LED, Blue, Spot, Sprayer P.N: WL38BS Recommended for sprayer applications. 1 light per boom recommended up to 80'. 2 lights per boom recommended per boom 80' to 140'Properly functioning spray nozzles are a must. The blue beam provides day or night illumination of nozzle spray patterns, giving you the ability to see them better during operation. Installs easily and quickly with low amp draw.Allows for spraying at night when plants are under less stress, evaporation is slower, and there is less wind and spray driftLamps should be mounted at the center pivot position and can be wired with field lightingMounting u-bracket and stud included. No other mount brackets includedPower & ground wires have bare ends. Light comes with mating weather pack connectors & pins to use if desiredLight body has anti-corrosion coating that provides extended protection against ag chemicalsDim A (1): 9 - 3 Watt Cree LED DiodesDim B (2): Emitted Color: BlueDim C (3): Voltage: 10-30 Volt DCDim D (4): Draws 2.25 Amps @ 12 Volts & 1.13 Amps @ 24 Volts (Watts / Volts = Amps)Dim E (5): Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 CelsiusDim F (6): Body Material: Die Cast Aluminum w/ Anti-Corrosion CoatingDim G (7): Body Size: Width 4.1" (104 mm) X Height 4.1" (104mm) X Depth 2.4" (61mm)Dim H (8): Lens Material: PolycarbonateDim I (9): Mounting Hardware Found in Section & Models : Lights & Related Parts > LED Work Lamps, Agco SPRAYER: AIR MAX 2000, Agco SPRAYER: BIG A2500, Agco SPRAYER: BIG A2600, Agco SPRAYER: BIG A2800, Agco SPRAYER: BIG A3000, Agco SPRAYER: BIG A3500, Agco SPRAYER: BIG A4500, Agco SPRAYER: EAGLE 8500, Agco SPRAYER: EAGLE 8600, Agco SPRAYER: RG1100, Agco SPRAYER: RG1100B, Agco SPRAYER: RG700, Agco SPRAYER: RG900, Agco SPRAYER: RG900B, Agco SPRAYER: SS1074, Agco SPRAYER: SS1074C, Agco SPRAYER: TG7300, Agco SPRAYER: TG8300, Agco SPRAYER: TG8400, Agco SPRAYER: TG9300 Associated Items : New Also A-AC-P-FUELINJ, A-IH-C-FARMPWR, A-CT-C-EQUIP1929, A-DE-S-2911842, A-FO-O-16-46COMB, A-FO-P-FERGIMP, A-FO-S-CONSUMPR, A-OL-MI-CHARLES And : Recommended for sprayer applications. 1 light per boom recommended up to 80'. 2 lights per boom






recommended per boom 80' to 140' Properly functioning spray nozzles are a must. The blue beam provides day or night illumination of






nozzle spray patterns, giving you the ability to see them better during operation. Installs easily



and quickly with low amp draw. Allows for spraying at night when plants are under less stress, evaporation is slower, and there is






less wind and spray drift Lamps should be mounted at the center pivot position and can be wired with field lighting Power & ground wires have bare ends. Light comes with mating weather pack connectors & pins to use






if desired Light body has anti-corrosion coating that provides extended protection against ag chemicals Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius Body: Square Body Material: Die Cast Aluminum w/ Anti-Corrosion Coating Dimensions: Width 4.1" (104 mm) X Height 4.1" (104mm) X Depth 2.4" (61mm) Diode: (9) 3 Watt Cree Diodes (Emitted Color: Blue) Draw: 2.25 Amps @ 12 Volts & 1.13 Amps @ 24 Volts (Watts / Volts = Amps) Includes: Mounting u-bracket and stud Lens: Polycarbonate Light Pattern: Spot Volt: 10-30 Volt DC
