A-WL789KT Light Kit, LED, 8 Lights PN: WL789KT

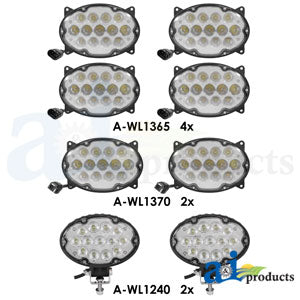

This is a A-WL789KT Light Kit, LED, 8 Lights PN: WL789KTMain Description As Following : A-WL789KT Light Kit, LED, 8 Lights P.N: WL789KT Replacement for the front headlights located at top of the cab 4 - WL1365 outer cab, 2 - WL1370 center cab and 2 - WL1240 stubble lights).This kit fits early model combines with 6 lights on top of the cab. A kit for later models with 8 lights on top is not currently offered by A & I Products.Part #s WL1365 & WL1370 are direct fit, they plug into the existing machine wiring harness, part # WL1240 comes with bare wire leads, they do not have a connector on the lightDim A (1): Specifications for part # WL1365Dim B (2): 13 - 5 Watt Cree LED Diodes, 6000 Raw Lumens - 3800 Effective Lumens, Color Temperature 6000K, Voltage: 10-30 Volt DC, Draws 5.4 Amps @ 12 Volts & 2.7 Amps @ 24 Volts (Watts / Volts = Amps), Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 CelsiusDim C (3): Body Material: Die Cast Aluminum, Body Size: 6.34" (16.1cm) Width X 4.33" (11cm) Height X 3.54" (9cm) Depth, Lens Material: Polycarbonate, Built In Premium EMC Noise Suppression FilterDim D (4): Specifications for part # WL1370Dim E (5): Hi/Lo Beam, 13 - 5 Watt Cree LED Diodes, Raw Lumens Low Beam 2800 / Effective Lumens Low Beam 1800, Raw Lumens High Beam 6000 / Effective Lumens High Beam 3800, Color Temperature 6000K, Voltage: 10-30 Volt DC, Draws 5.4 Amps @ 12 Volts & 2.7 Amps @ 24 Volts (Watts / Volts = Amps)Dim F (6): Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius, Body Material: Die Cast Aluminum, Body Size: 6.34" (16.1cm) Width X 4.33" (11cm) Height X 3.54" (9cm) Depth, Lens Material: Polycarbonate, Built In Premium EMC Noise Suppression FilterDim G (7): Specifications for part # WL1240Dim H (8): 13 - 3 Watt Cree LED Diodes, 3120 Raw Lumens - 3000 Effective Lumens, Color Temperature 6000K, Voltage: 10-30 Volt DC, Draws 3.25 Amps @ 12 Volts & 1.6 Amps @ 24 Volts (Watts / Volts = Amps)Dim I (9): Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius, Body Material: Die Cast Aluminum, Body Size: 5.66" (14.4cm) Width X 3.86" (9.8cm) Height X 2.75" (6.9cm) Depth, Lens Material: Polycarbonate, Built In Premium EMC Noise Suppression Filter Found in Section & Models : Lights & Related Parts > LED Work Lamps, Case-IH COMBINE: 5088, Case-IH COMBINE: 6088, Case-IH COMBINE: 7088, Case-IH COMBINE: 7120, Case-IH COMBINE: 7130, Case-IH COMBINE: 7230, Case-IH COMBINE: 8010, Case-IH COMBINE: 8120, Case-IH COMBINE: 8230, Case-IH COMBINE: 9120, Case-IH COMBINE: 9130, Case-IH COMBINE: 9230 Associated Items : New Also This is An Aftermarket Product And : Replacement for the front headlights located at top of the cab (4) A-WL1365 outer cab, (2) A-WL1370






center cab and (2) A-WL1240 stubble lights). This kit fits early model combines with 6 lights on top of the cab. A kit for later models with 8






lights on top is not currently offered by A & I Products. Part #s A-WL1365 & A-WL1370 are direct fit, they plug into the existing machine wiring harness, part






# A-WL1240 comes with bare wire leads, they do not have a connector on the light For light specifications click on the part number below in the Included in this kit list
