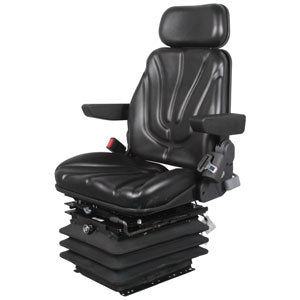

A-F10A6045 Seat, F10 Series w/ Isolator, Air Suspension, Black Vinyl PN: F10A6045

This is a A-F10A6045 Seat, F10 Series w/ Isolator, Air Suspension, Black Vinyl PN: F10A6045Main Description As Following : A-F10A6045 Seat, F10 Series w/ Isolator, Air Suspension, Black Vinyl PN: F10A6045 Found in Section & Models : Seats > F Series Seats, Agco TRACTOR: DT160, Agco TRACTOR: DT180, Agco TRACTOR: DT180A, Agco TRACTOR: DT200, Agco TRACTOR: DT200A, Agco TRACTOR: DT205B, Agco TRACTOR: DT220A, Agco TRACTOR: DT225, Agco TRACTOR: DT240A, Agco TRACTOR: DT250B, Agco TRACTOR: DT275A, Agco TRACTOR: LT70, Agco TRACTOR: LT75, Agco TRACTOR: LT75A, Agco TRACTOR: LT85, Agco TRACTOR: LT85A, Agco TRACTOR: LT90, Agco TRACTOR: LT90A, Agco TRACTOR: LT95A, Agco TRACTOR: RT100 Associated Items : New Also A-AC-P-FUELINJ, A-AC-O-606080D, A-AC-P-6060, A-AC-S-6060, A-AC-O-606080D, A-AC-O-60706080, A-AC-P-6080, A-AC-S-6060, A-AC-O-7000DSL, A-AC-O-7000ERLY, A-AC-P-7000, A-AC-P-7000ERLY, A-AC-S-7000DSL, A-FRM-ACCACO, A-SMAC202, A-AC-O-7010D, A-AC-P-7010, A-AC-S-7010, A-FRM-ACCACO, A-SMAC202 And : The A-F10A6045 F-Series seat has a 4" air suspension stroke with 6" slide track travel, and weight






adjustment from 110 to 330 lbs. It features lumbar support, an ergonomic design, adjustable



backrest, headrest, and armrests. The seat cushion and backrest are covered in durable black vinyl



and are removable, and it includes OPS and a seat belt. The isolator allows 0.79" front-to-rear



movement forcomfort and can be engaged or disengaged with a lever. Made of heavy-duty materials, the



seat requires some assembly and may need drilling for installation. It operates at 9 amps and



runs on 12 volts. Suspension stroke 4" / 100mm Slide track travel 6" / 150mm Weight adjustment 110 - 330 lbs. / 150kg Mechanical lumbar support Ergonomic design Multi-angle adjustable backrest, adjustable headrest & fold-up armrests Seat cushion & backrest are removable. OPS & seat belt included Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator






allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a



more comfortable and healthier ride. It has one lever to engage or disengage isolator function Heavy duty construction, some assembly required All dimensions & specifications must be checked before ordering. This is a universal seat meant for






a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat Amperage: 9 Max Includes: F10 Series black vinyl seat / STD profile wide base air suspension / slide tracks / armrests /






headrest / OPS / seat belt / isolator Volt: 12
