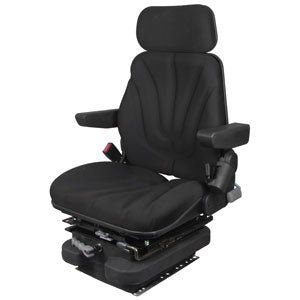

This is a A-F10M4130 Seat, F10 Series w/ Isolator, Low Pro Mechanical Suspension, Black Cloth PN: F10M4130Main Description As Following : A-F10M4130 Seat, F10 Series w/ Isolator, Low Pro Mechanical Suspension, Black Cloth PN: F10M4130 Found in Section & Models : Seats > F Series Seats, (Miscellaneous) (UNDEFINED): SEVERAL, Ariens / Gravely MOWER, RIDING: MAX ZOOM 2560, Ariens / Gravely MOWER, RIDING: ZOOM 2040, Ariens / Gravely MOWER, RIDING: ZOOM 2042XL, Ariens / Gravely MOWER, RIDING: ZOOM 2350, Ariens / Gravely MOWER, RIDING: ZOOM 2548XL, Ariens / Gravely MOWER, RIDING: ZOOM 34, Ariens / Gravely MOWER, ZERO-TURN: MAX ZOOM 2552, Bad Boy MOWER, RIDING: 4800 PUP, Bad Boy MOWER, RIDING: 5200 LIGHTNING Z, Bad Boy MOWER, RIDING: 5200 PUP, Bad Boy MOWER, RIDING: 6000 LIGHTING Z, Bad Boy MOWER, RIDING: 6000 LPG, Bad Boy MOWER, RIDING: 6000 PUP, Bad Boy MOWER, RIDING: 6000AOS, Bad Boy MOWER, RIDING: 6000AOSD, Bad Boy MOWER, RIDING: 7200 LIGHTING Z, Bad Boy MOWER, RIDING: 7200AOS, Bad Boy MOWER, RIDING: 7200AOSD, Bobcat COMPACT TRACK LOADER: T140 Associated Items : New Also A-IH-S-AIRHEAT, A-IH-S-AIRHEAT, A-IH-S-AIRHEAT, A-IH-S-ENGGASE, A-IH-S-AIRHEAT, A-IH-S-AIRHEAT, A-IH-S-AIRHEAT, A-CA-O-885DB, A-CA-P-885ETEC, A-CA-P-885NQDB, A-CA-S-770TM, A-CA-S-955, A-CA-S-995, A-IH-O-BATTIGN, A-IH-S-AIRHEAT, A-IH-S-ENGD155, A-IH-S-TUNELATE, A-IH-S-85SERERLY, A-CA-S-995, A-IH-O-BATTIGN And : The A-F10M4130 F-Series seat has a 1.5" low profile mechanical suspension stroke with 6" slide
tracktravel, and weight adjustment from 110 to 330 lbs. It features lumbar support, an ergonomic
design , adjustable backrest, headrest, and armrests. The removeable seat cushion and backrest are
covered in durable black cloth and includes operator presence switch (OPS) and seat belt. The
isolator allows 0.79" front-to-rear movement for comfort and can be engaged or disengaged with
a lever. Made of heavy-duty materials, the seat requires some assembly and may need drilling for
installation. It operates at 9 amps and runs on 12 volts. Suspension stroke 1.5" / 50mm Slide track travel 6" / 150mm Weight adjustment 110 - 330 lbs. / 150kg Mechanical lumbar support Ergonomic design Multi angle adjustable backrest, adjustable headrest & fold-up armrests Seat cushion & backrest are removeable. OPS, seat belt & isolator included Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator
allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a
more comfortable and healthier ride. It has one lever to engage or disengage isolator function Heavy duty construction, some assembly required All dimensions & specifications must be checked before ordering. This is a universal seat meant for
a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat Includes: F10 Series black cloth seat / low profile mechanical suspension / slide tracks / armrests / headrest
/ OPS / seat belt / isolator
