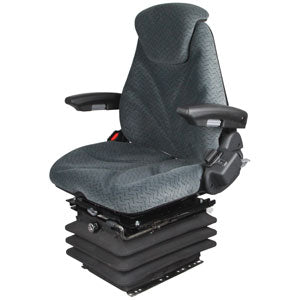

A-F20A7035 Seat, F20 Series w/ Isolator, Air Suspension, Gray Cloth PN: F20A7035

This is a A-F20A7035 Seat, F20 Series w/ Isolator, Air Suspension, Gray Cloth PN: F20A7035Main Description As Following : A-F20A7035 Seat, F20 Series w/ Isolator, Air Suspension, Gray Cloth PN: F20A7035 Found in Section & Models : Seats > F Series Seats, (Miscellaneous) (UNDEFINED): SEVERAL, Agco TRACTOR: DT160, Agco TRACTOR: DT180, Agco TRACTOR: DT180A, Agco TRACTOR: DT200, Agco TRACTOR: DT200A, Agco TRACTOR: DT205B, Agco TRACTOR: DT220A, Agco TRACTOR: DT225, Agco TRACTOR: DT240A, Agco TRACTOR: DT250B, Agco TRACTOR: DT275A, Agco TRACTOR: LT70, Agco TRACTOR: LT75, Agco TRACTOR: LT75A, Agco TRACTOR: LT85, Agco TRACTOR: LT85A, Agco TRACTOR: LT90, Agco TRACTOR: LT90A, Agco TRACTOR: LT95A Associated Items : New Also A-AC-P-FUELINJ, A-AC-O-606080D, A-AC-P-6060, A-AC-S-6060, A-AC-O-606080D, A-AC-O-60706080, A-AC-P-6080, A-AC-S-6060, A-AC-O-7000DSL, A-AC-O-7000ERLY, A-AC-P-7000, A-AC-P-7000ERLY, A-AC-S-7000DSL, A-FRM-ACCACO, A-SMAC202, A-AC-O-7010D, A-AC-P-7010, A-AC-S-7010, A-FRM-ACCACO, A-SMAC202 And : The F20 A-F20A7035 F-Series seat has a 4" air suspension stroke with 6" slide track travel, and






weight adjustment from 110 to 330 lbs. The seat includes an isolator allowing 0.79" front-to-rear



movement for comfort and can be engaged or disengaged with a lever. The seat features lumbar



support, an ergonomic design, adjustable backrest, headrest, and armrests. The removeable seat



cushion and backrest are covered in durable gray cloth and includes flat pad presence switch and



seat belt. Madeof heavy-duty materials, the seat requires some assembly and may need drilling for



installation. It operates at 9 amps and runs on 12 volts. Suspension stroke 4" / 100mm Slide track travel 6" / 150mm Weight adjustment 110 - 330 lbs. / 150kg Mechanical lumbar support Ergonomic design Multi-angle adjustable backrest, adjustable headrest & fold-up armrests Seat cushion & backrest are removeable. OPS & seat belt included Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator






allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a



more comfortable and healthier ride. It has one lever to engage or disengage isolator function Heavy duty construction, some assembly required All dimensions & specifications must be checked before ordering. This is a universal seat meant for






a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat Amperage: 9 Max Includes: F20 Series gray cloth seat / STD profile air suspension / slide tracks / armrests / headrest / OPS /






seat belt / isolator Volt: 12
