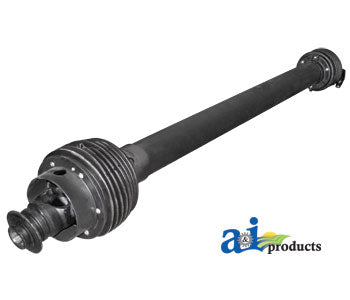

A-87643132 Round Baler Driveline, 540 RPM, BP Size S4, SFT CV W/ Shear Bolt PN: 87643132

This is a A-87643132 Round Baler Driveline, 540 RPM, BP Size S4, SFT CV W/ Shear Bolt PN: 87643132Main Description As Following : A-87643132 Round Baler Driveline; 540 RPM, BP Size S4, SFT CV W/ Shear Bolt P.N: 87643132 New CV (Constant Velocity) Driveline Assembly. This is a complete driveline replacement, components from the original will not interchange. Drive is a 4 SFT CV free rotation with shear bolt clutch. The tractor yoke is 1-3/8" 6 spline with quick disconnect collar. The Implement yoke is 1-3/8" 21 spline threaded pin shear bolt. The C-to-C length is 51". Fits Case-IH and Ford / New Holland Round Balers.Implement: 1 3/8" -21 Tapered Pin Shear BoltLength: 51" Center to Center On U-JointsReplaces: 89600269Size: 4 SFT CV free rotation w/shear bolt clutchTractor: 1 3/8" - 6 QD Collar Replaces: 86604844 NEW HOLLAND , 87516686 DRIVELINE , A-9600269 NEW HOLLAND Found in Section & Models : Driveline (by application) > CV Driveline Assembly, Case-IH BALER, ROUND: RBX441, Case-IH BALER, ROUND: RBX442, Ford / New Holland BALER, ROUND: BR7060, Ford / New Holland BALER, ROUND: BR740, Ford / New Holland BALER, ROUND: BR740A Associated Items : A-BP432000047 Also This is An Aftermarket Product And : New CV (Constant Velocity) Driveline Assembly. This is a complete driveline replacement, components






from the original will not interchange. Drive is a 4 SFT CV free rotation with shear bolt clutch.



The tractor yoke is 1-3/8" 6 spline with quick disconnect collar. The Implement yoke is 1-3/8" 21



spline threaded pin shear bolt. The C-to-C length is 51". Fits Case-IH and Ford / New Holland Round



Balers. Original Bondioli & Pavesi part. Implement: 1 3/8" -21 Tapered Pin Shear Bolt Length: 51" Center to Center On U-Joints Replaces: 89600269 Size: 4 SFT CV free rotation w/shear bolt clutch Tractor: 1 3/8" - 6 QD Collar
