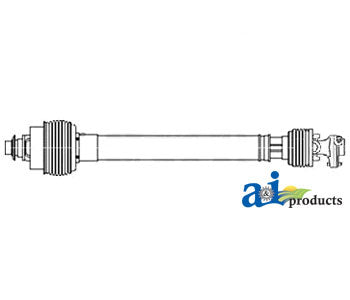

A-9600269 Driveline Assembly, CV PN: 9600269

This is a A-9600269 Driveline Assembly, CV PN: 9600269Main Description As Following : A-9600269 Driveline Assembly; CV P.N: 9600269 New CV (Constant Velocity) Driveline Assembly. This is a complete driveline replacement, components from the original will not interchange. Drive is a 4 SFT CV free rotation with shear bolt clutch. The tractor yoke is 1-3/8" 6 spline with quick disconnect collar. The Implement yoke is 1-3/8" 21 spline threaded pin shear bolt. The C-to-C length is 51". FitsFord / New Holland Round Balers.Complete Replacement - Components From Original Will Not Interchange.It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.Implement: 1 3/8" -21 Tapered Pin Shear BoltLength: 51" Center to Center On U-JointsReplaces: 89600269Size: 4 SFT CV free rotation w/shear bolt clutchTractor: 1 3/8" - 6 QD Collar Stocked As: A-87643132 Found in Section & Models : Driveline (by application) > CV Driveline Assembly, Ford / New Holland BALER, ROUND: 630, Ford / New Holland BALER, ROUND: 634, Ford / New Holland BALER, ROUND: 638 Associated Items : New Also This is An Aftermarket Product And : New CV (Constant Velocity) Driveline Assembly. This is a complete driveline replacement, components






from the original will not interchange. Drive is a 4 SFT CV free rotation with shear bolt clutch.



The tractor yoke is 1-3/8" 6 spline with quick disconnect collar. The Implement yoke is 1-3/8" 21



spline threaded pin shear bolt. The C-to-C length is 51". FitsFord / New Holland Round Balers. Complete Replacement - Components From Original Will Not Interchange. It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient






overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Implement: 1 3/8" -21 Tapered Pin Shear Bolt Length: 51" Center to Center On U-Joints Replaces: 89600269 Size: 4 SFT CV free rotation w/shear bolt clutch Tractor: 1 3/8" - 6 QD Collar
